EVO H

Additional stabilizers, with adjustable jacks and available with different cylinder lengths. The lateral extension of these stabilizers occurs hydraulically.

Suitable for standard truck crane

Suitable for large truck crane

Suitable for truck loader crane

Request a Quote

EVO H Additional Stabilizer: High-Performance Hydraulic Stabilization

EVO H stabilizers represent an advanced solution for operators who require strong, adaptable support in demanding working conditions.

Engineered with an adjustable jack and available in multiple cylinder lengths, they ensure superior precision, flexibility, and durability.

Unlike the fixed version, the EVO H series features a hydraulic lateral extension system, allowing rapid and controlled positioning, optimizing work times, and enhancing operational safety.

Articulated Steel Footplate for Long-Lasting, Reliable Performance

Every EVO H model comes standard with an articulated steel footplate, a construction choice that guarantees robustness, long-term durability, and wear resistance — even in harsh environments and on uneven ground.

Request a customized quote today and discover how EVO H stabilizers can significantly improve the performance of your equipment.

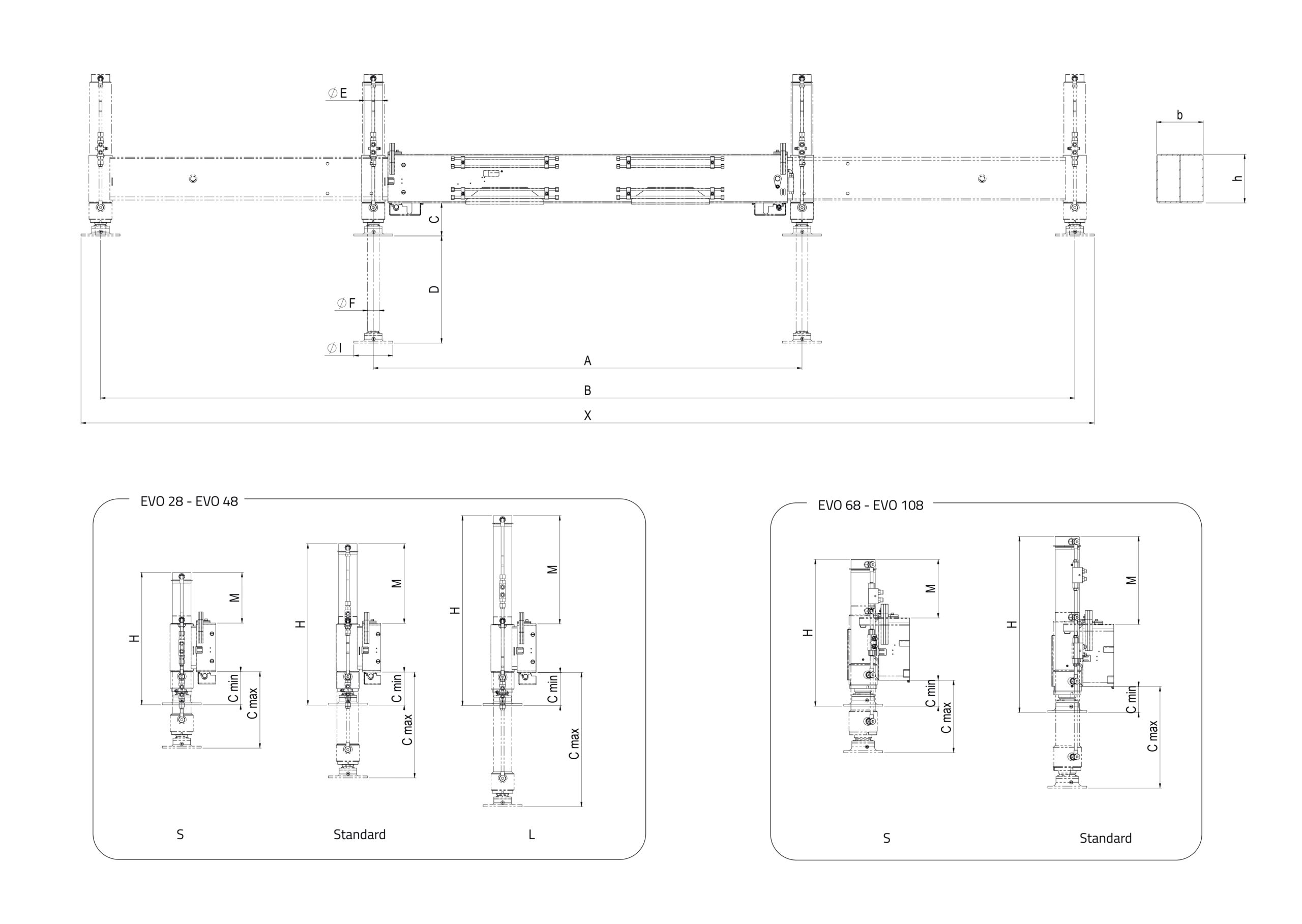

MODEL	CRANE (tm)	R.MAX (daN)	WEIGHT (kg)	A (mm)	B (mm)	X (mm)	h x b (mm)	C MIN (mm)	C MAX (mm)	I (mm)	D (mm)	E (mm)	F (mm)	H (mm)	M (mm)
EVO 28 3.3 HL	12>25	6.300	259	2.110	3.310	3.510	200×100	170	620	200	605	85	60	865	490
EVO 28 3.3 H	12>25	6.300	251	2.110	3.310	3.510	200X100	170	470	200	450	85	60	710	340
EVO 28 4.4 HL	12>25	6.200	304	2.120	4.410	4.610	200X200	170	620	200	605	85	60	865	490
EVO 28 4.4 H	12>25	6.200	298	2.120	4.410	4.610	200X200	170	470	200	450	85	60	710	340
EVO 38 3.3 HL	19>36	9.000	294	2.100	3.300	3.500	200X120	170	730	200	696	95	60	975	600
EVO 38 3.3 H	19>36	9.000	263	2.100	3.300	3.500	200X120	170	580	200	550	95	60	830	450
EVO 38 3.3 HS	19>36	9.000	255	2.100	3.300	3.500	200X120	170	430	200	400	95	60	680	300
EVO 38 4.7 HL	19>36	8.600	420	2.110	4.710	4.910	200X240	170	730	200	696	95	60	975	600
EVO 38 4.7 H	19>36	8.600	407	2.110	4.710	4.910	200X240	170	580	200	550	95	60	830	450
EVO 38 4.7 HS	19>36	8.600	387	2.110	4.710	4.910	200X240	170	430	200	400	95	60	680	300
EVO 48 5.0 HL	25>40	10.500	505	2.200	5.000	5.200	250X240	170	710	200	696	95	60	975	555
EVO 48 5.0 H	25>40	10.500	495	2.200	5.000	5.200	250X240	170	565	200	550	95	60	830	410
EVO 48 5.0 HS	25>40	10.500	469	2.200	5.000	5.200	250X240	170	415	200	400	95	60	680	260
EVO 68 5.0 H	40>60	14.000	602	2.200	5.000	5.200	300×240	85	505	200	650	105	70	935	550
EVO 68 5.0 HS	40>60	14.000	584	2.200	5.000	5.200	300×240	85	350	200	500	105	70	785	400
EVO 88 6.0 H	50>80	17.000	891	2.290	6.000	6.200	320×320	135	530	200	600	125	90	905	450
EVO 88 6.0 HS	50>80	17.000	850	2.290	6.000	6.200	320×320	135	380	200	450	125	90	755	300
EVO 108 6.9 H	70>100	18.000	1.023	2.315	6.900	7.100	320×360	75	465	200	600	125	90	905	510
EVO 108 6.9 HS	70>100	18.000	995	2.315	6.900	7.100	320×360	75	315	200	450	125	90	755	360
MODEL	CRANE (tm)	R.MAX (daN)	WEIGHT (kg)	A (mm)	B (mm)	X (mm)	h x b (mm)	C MIN (mm)	C MAX (mm)	I (mm)	D (mm)	E (mm)	F (mm)	H (mm)	M (mm)
